CHEVY & GMC · HD TRUCK APPLICATIONS

ALLISON 1000TRANSMISSIONS

WORK HARD. TOW WITH PURPOSE. BUILD AROUND YOUR TRUCK.

Explore Allison 1000 transmission diagnostics, rebuilds and upgrade options at Pitbull Transmissions in Magnolia, Texas. Tell us what your truck does and what it needs next.

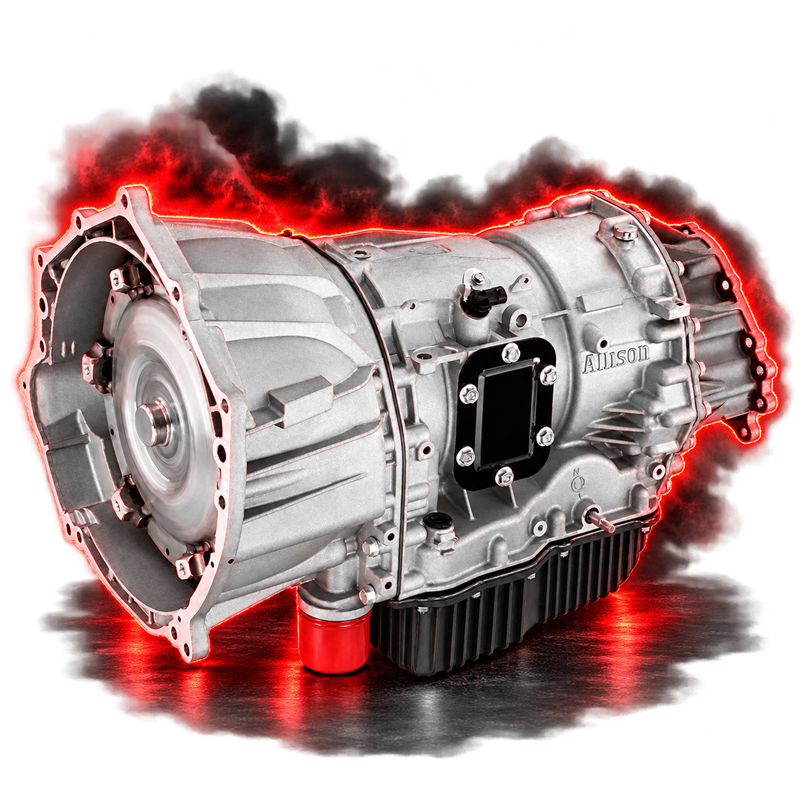

ALLISON 1000 transmission; edited model reference with black deep pan and red accents
ALLISON 1000 / PITBULL TRANSMISSIONS / MAGNOLIA, TX
APPLICATION REVIEWDIAGNOSTICS & REBUILDSBUILD OPTIONS
START WITH THE APPLICATION

YOUR TRUCK COMES FIRST.
THE BUILD FOLLOWS.

If your Chevy Silverado HD or GMC Sierra HD uses an Allison 1000, let’s review the exact application and your truck’s requirements. Share the vehicle details and transmission information before selecting a rebuild or replacement.

Whether you need help with a shifting concern or want to discuss a rebuild, tell us how you use your truck. The right conversation starts with the details.

TELL US ABOUT MY TRUCK ↗
BUILT AROUND REAL USE

WHAT DOES YOUR
TRUCK NEED TO DO?

Start with your use. Discuss the available build options, components and scope with our team.

MORE THAN A MODEL NUMBER

ASK THE QUESTIONS
THAT SHAPE YOUR BUILD.

01 / DIAGNOSIS

Understand the concern.

Discuss the symptoms and inspection findings before settling on the work your transmission needs.

02 / CONVERTER & HYDRAULICS

Look at the complete setup.

Ask how converter condition, valve-body operation and hydraulic concerns relate to the proposed repair or rebuild.

03 / HEAT & WORKLOAD

Describe real operating conditions.

Share towing, work demands and any heat concerns so cooling and operating conditions are part of the discussion.

04 / SCOPE & EXPECTATIONS

Know what is included.

Confirm the proposed components, installation or shipping arrangements, timing and warranty terms in your quote.

ALLISON 1000 / TECHNICAL GUIDE

SHIFT FLARE OR SHUDDER?
IDENTIFY THE CIRCUIT.

Allison 1000 diagnostics need the model year and transmission identification, as well as a clear description of the complaint. A delay selecting Drive, a flare during a gear change and a vibration during converter lockup are different observations. Describe what you feel before choosing a replacement part.

CONVERTER LOCKUP

Sonnax documents loss of converter apply pressure from wear in the low-gain TCC control valve and bore on applicable 2010-and-later Allison 1000/2000/2400 units. Possible results include converter-clutch slip, shudder or no lockup. The valve design must be identified before selecting a repair.

SHIFT & ENGAGEMENT

The Sonnax valve-body layout identifies separate manual-valve, shift-control and converter circuits. A delayed engagement or flare deserves a circuit-specific investigation rather than assuming every symptom comes from the converter. Scan information and inspection findings help narrow the scope.

GENERATION MATTERS

Sonnax lists different F-trim and converter-control repairs for 2000–2005, 2006–2009 and later units. Parts selected only by the Allison name can miss these differences. Ask which transmission and valve-body version the proposed components fit.

WHAT TO REVIEW BEFORE REPAIR

  1. Bring the VIN, transmission identification, drivetrain, mileage and repair history. Include any engine or transmission tuning.
  2. Describe the affected gear change, road speed and whether the symptom changes after warm-up, with a trailer or when unloaded.
  3. Ask how testing separates electrical commands, hydraulic leakage and internal wear, and what evidence supports the proposed work.

ALLISON 1000 TECHNICAL QUESTIONS

Does shudder prove the converter itself is bad?

No. The cited TCC example shows why the hydraulic control circuit can matter too. Diagnosis should establish the cause before a converter-only repair is approved.

Are all Allison valve bodies the same?

No. The referenced layout separates several year ranges and valve designs. Match the actual unit before ordering parts or agreeing to a replacement.

Is this the same guide as the 10L1000?

Use the dedicated 10L1000 page for that transmission. Confirm the identification rather than choosing service information from the Allison name alone.

Discuss your vehicle with Pitbull Transmissions in Magnolia. OPEN SUNDAYS: 7 a.m.–5 p.m.; Monday–Friday: 7 a.m.–7 p.m., at both locations. View our service areas.

Technical references: Sonnax Allison valve-body layout; Sonnax low-gain TCC control valve. Applicability depends on the exact vehicle and unit; confirm current service information. This guide does not promise particular parts or upgrades in an individual Pitbull build.

ALLISON 1000 / QUESTIONS & ANSWERS

LET’S MAKE
THE NEXT STEP CLEAR.

How do I confirm my truck has an Allison 1000?

Share the year, model, engine, drivetrain and any transmission identification you have. Our team can explain what details to check before discussing the application.

Can I request an option for heavy towing?

Tell us your typical load, trailer and use. Ask our team to review appropriate build options for your particular truck instead of choosing only by a product name.

Should I choose a rebuild or replacement?

That depends on the application, condition and diagnosis. Discuss the findings, available options, timing and the scope of work with the shop.

Can I ask about installation and shipping?

Yes. Ask about current availability, installation scheduling or shipping options for your location. Confirm costs, timing and warranty terms directly with the team.
